ELECTRIC PANEL FOR PNEUMATIC PUMPS

The electric panel allows the pneumatic system to carry out the ON/OFF cycles of comrpessed air.

The electric panel for pneumatic pumps can be combined to various pneumatic systems:
The electric panel allows the pneumatic system to carry out the ON/OFF cycles of compressed air, fundamental for its proper functioning.

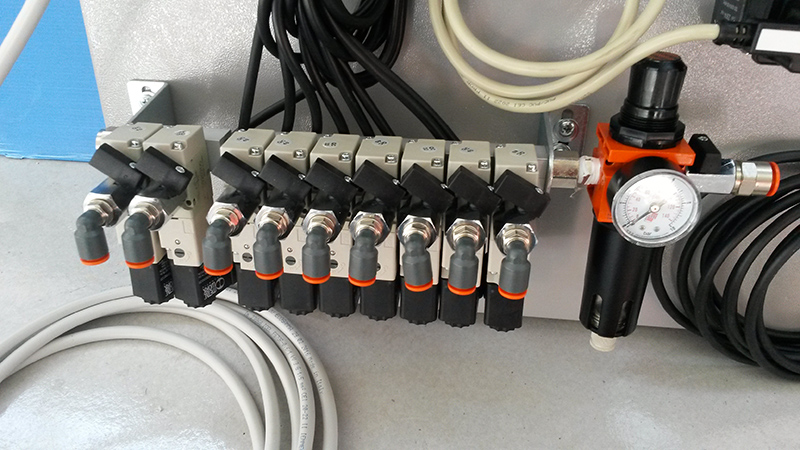

The electric panels for pneumatic pumps (IP55) are charged by 230V alternating energy and they can be arranged for one or more command lines. Each line is regulated by a solenoid valve and an ON/OFF regulating timer. It is possible to connect up to four pneumatic pumps to a single line; in that case, each pump would have the same regulation of the ON/OFF times.

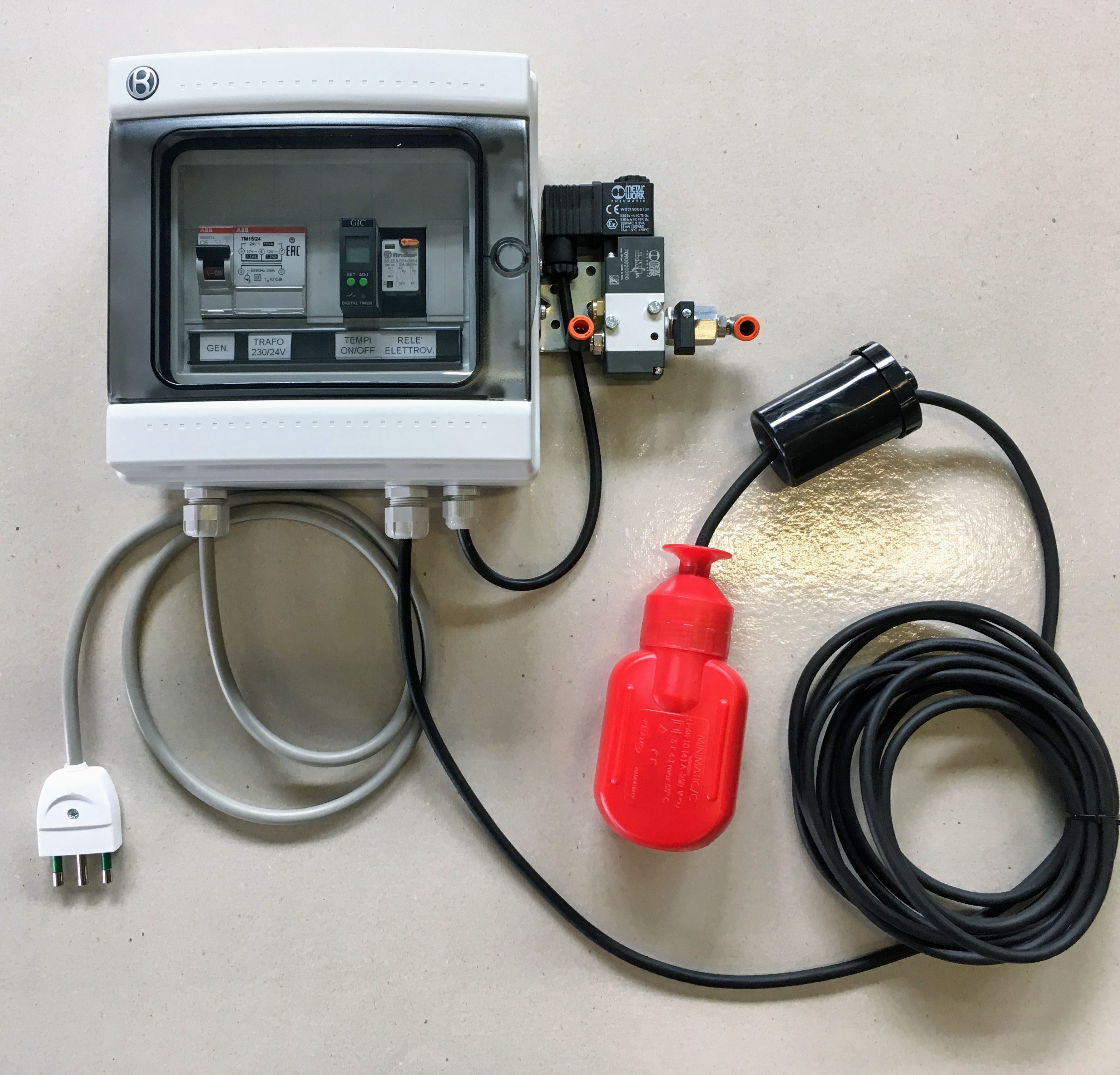

Hydrogea predisposes all panels with a Tank Full contact that closes the solenoid valve/s in case, for example, of the filling of a storage tank.

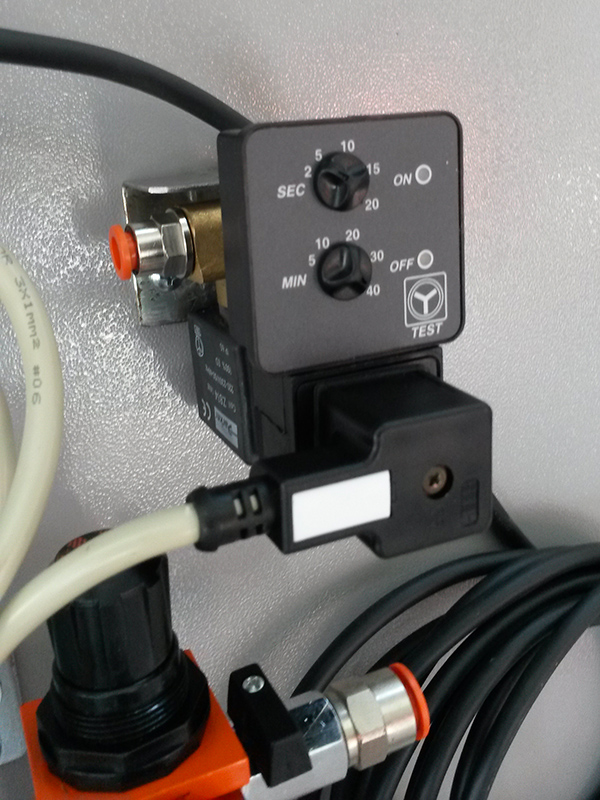

The regulation of the ON/OFF times, that open or close the 230V solenoid valve, positioned outside the panel, is implemented by a double ON/OFF rotary selector.
The compressed air that feeds the pneumatic pump is connected at the entry of the solenoid valve, whose exit is connected to the entry of the pneumatic pump.
The cyclic and repeated action of opening (ON) and closing (OFF) of the solenoid valve allows the pump to function.
The regulation of the ON/OFF times depends on the flow desired. Hydrogea normally suggests ON times sufficiently short to empty the pneumatic pump.

Specifications

fewfw
