The 12V EVO Pump Booster is a flux regulator exclusively dedicated at the use of the EVO 12V DC pump with 50 metres delivery height.

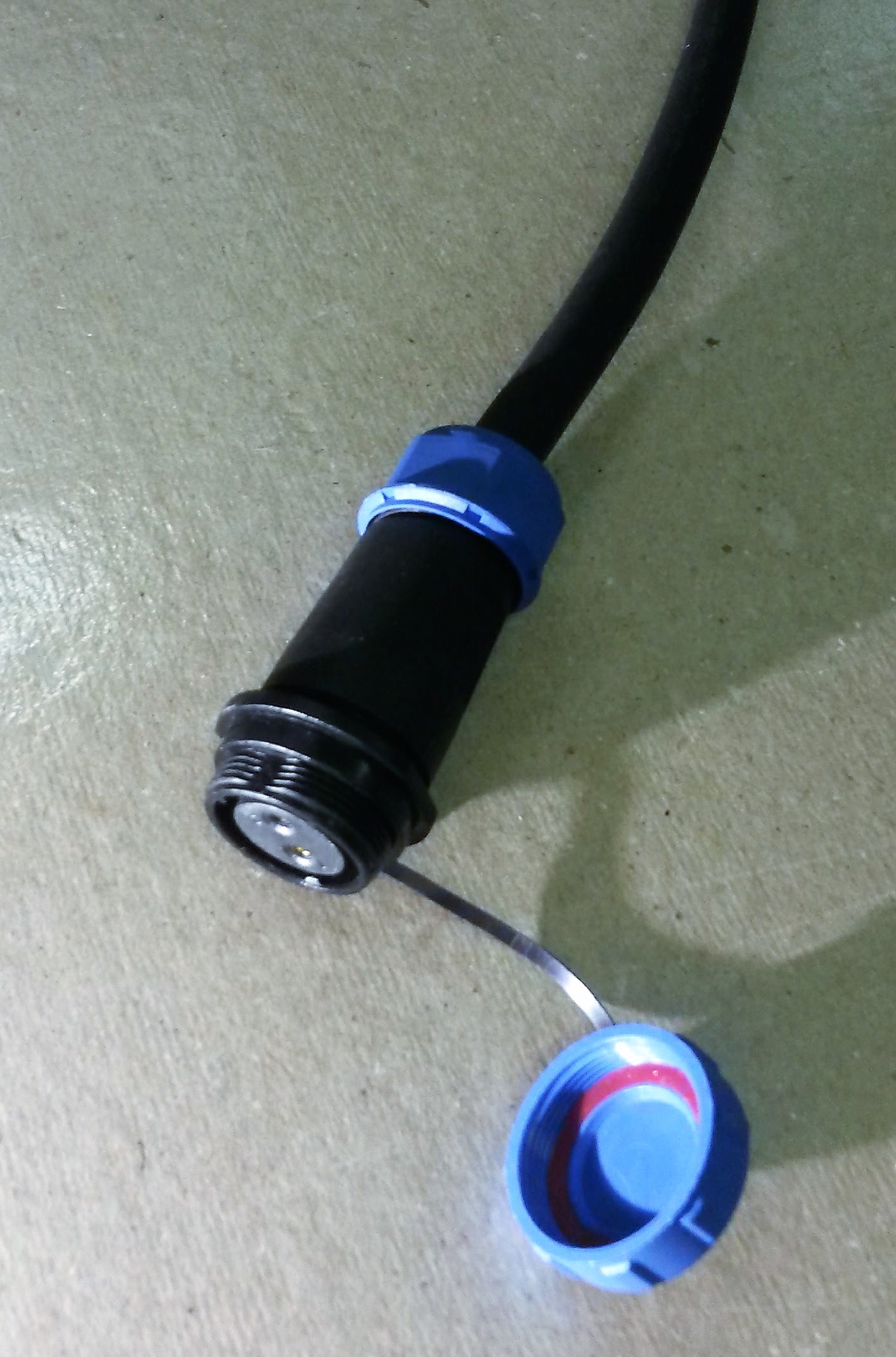

It is equipped with two-poles female connectors that can be used only with the EVO 12V DC pump.

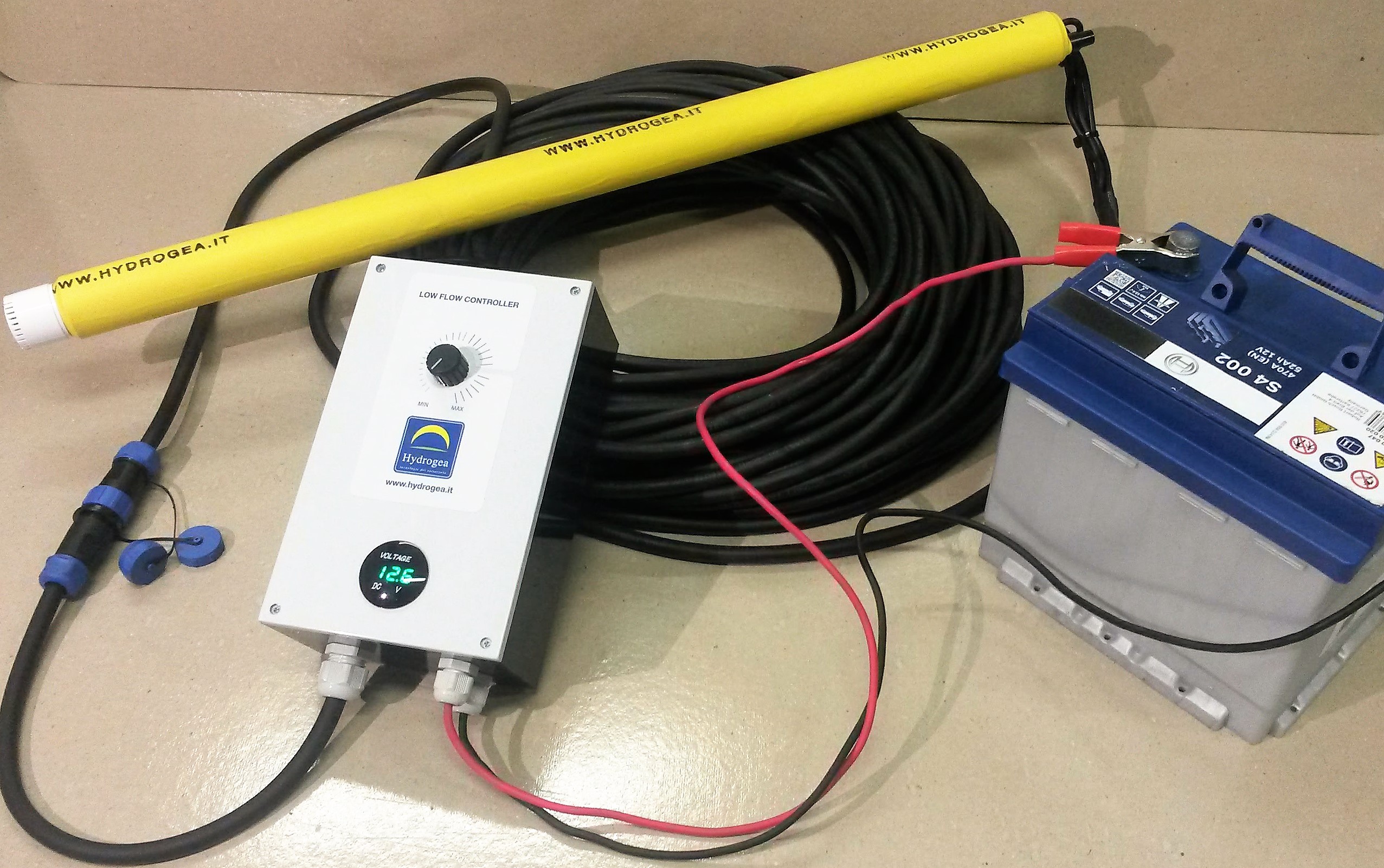

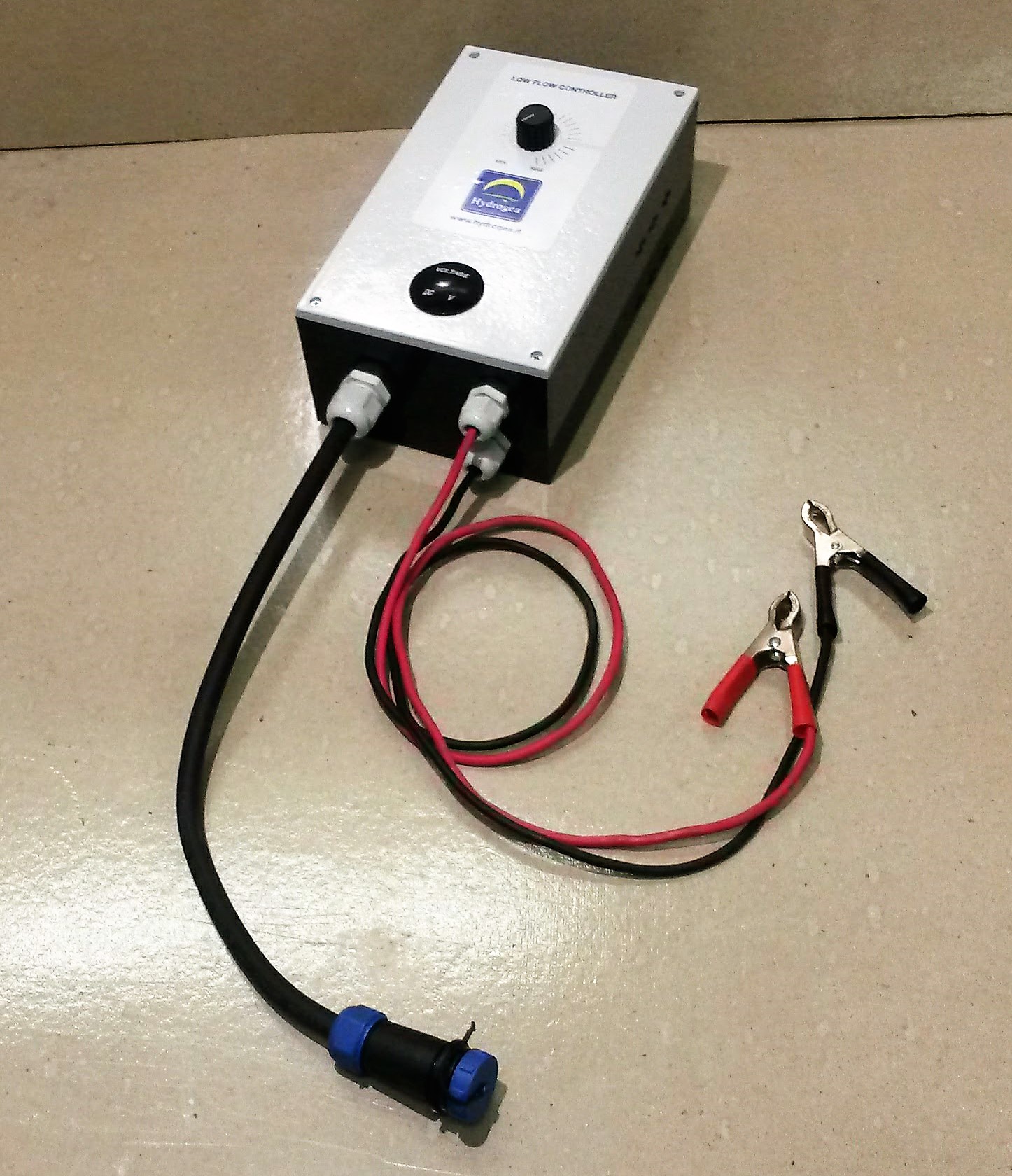

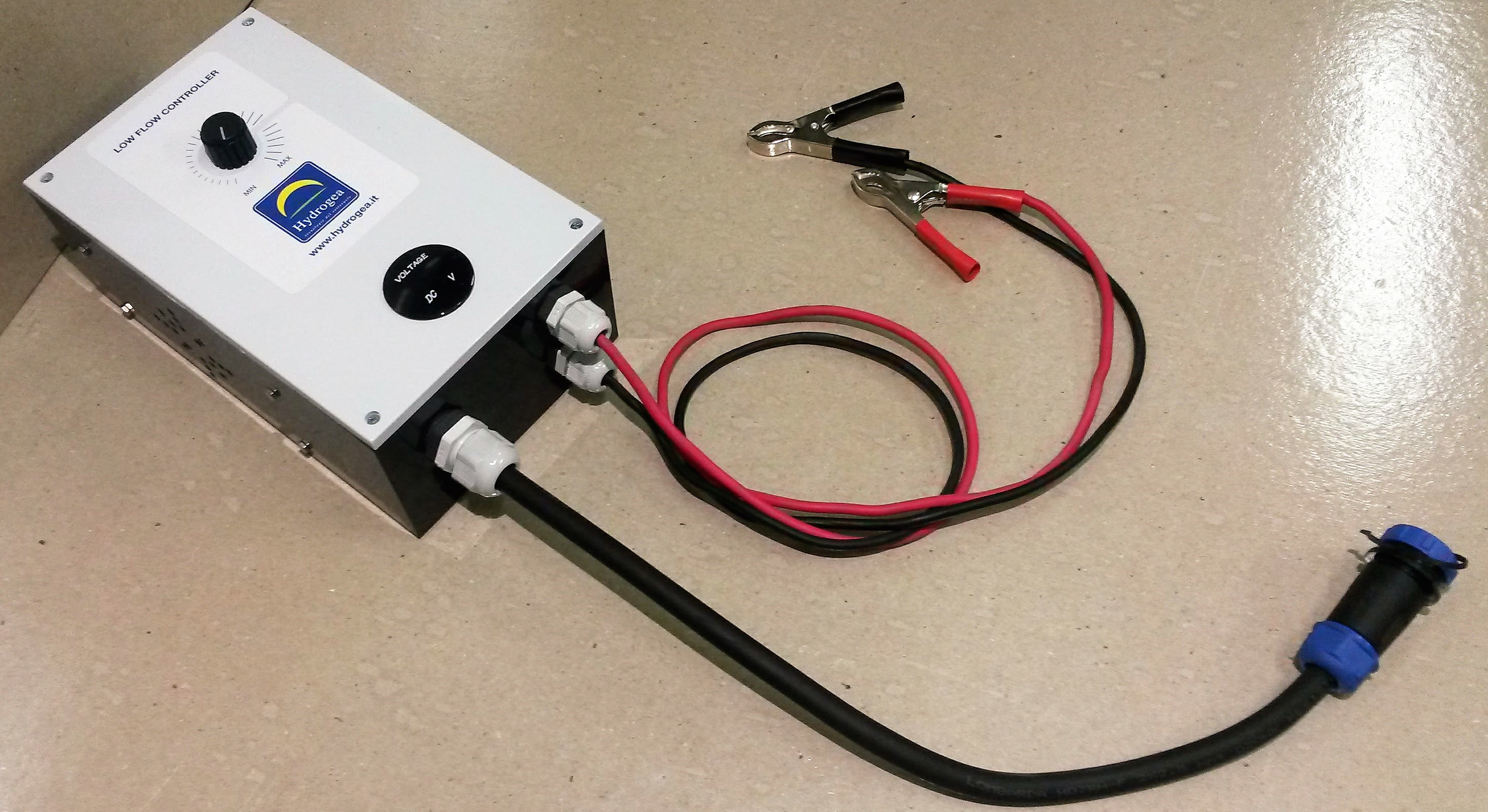

The power supply requires a 12V battery (as for a car: the two pliers must be linked respecting the polarities red (+) and black (-) on the battery).
In case of incorrect use of the indicated polarities, the regulator is furnished with a fuse protection.

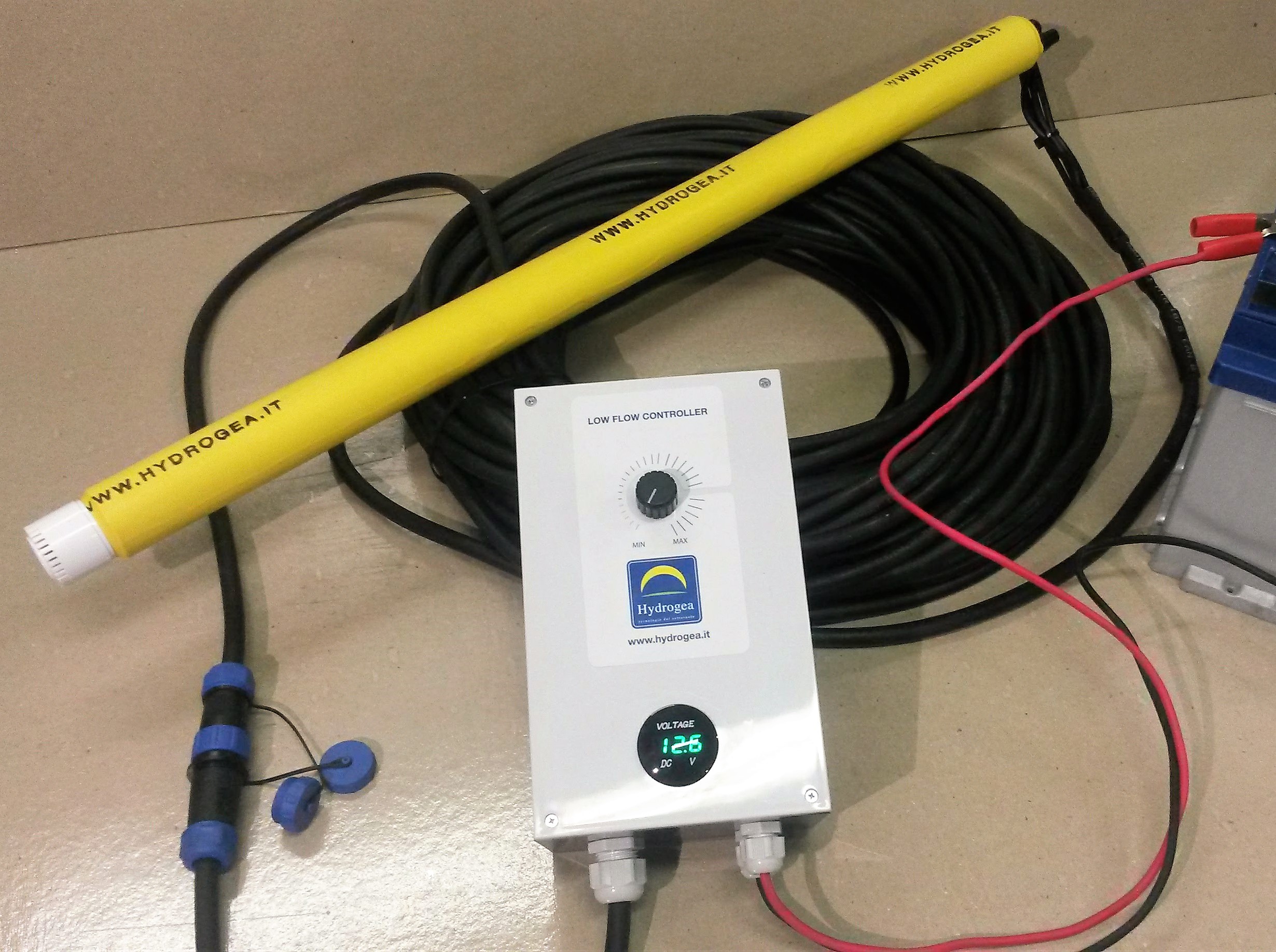

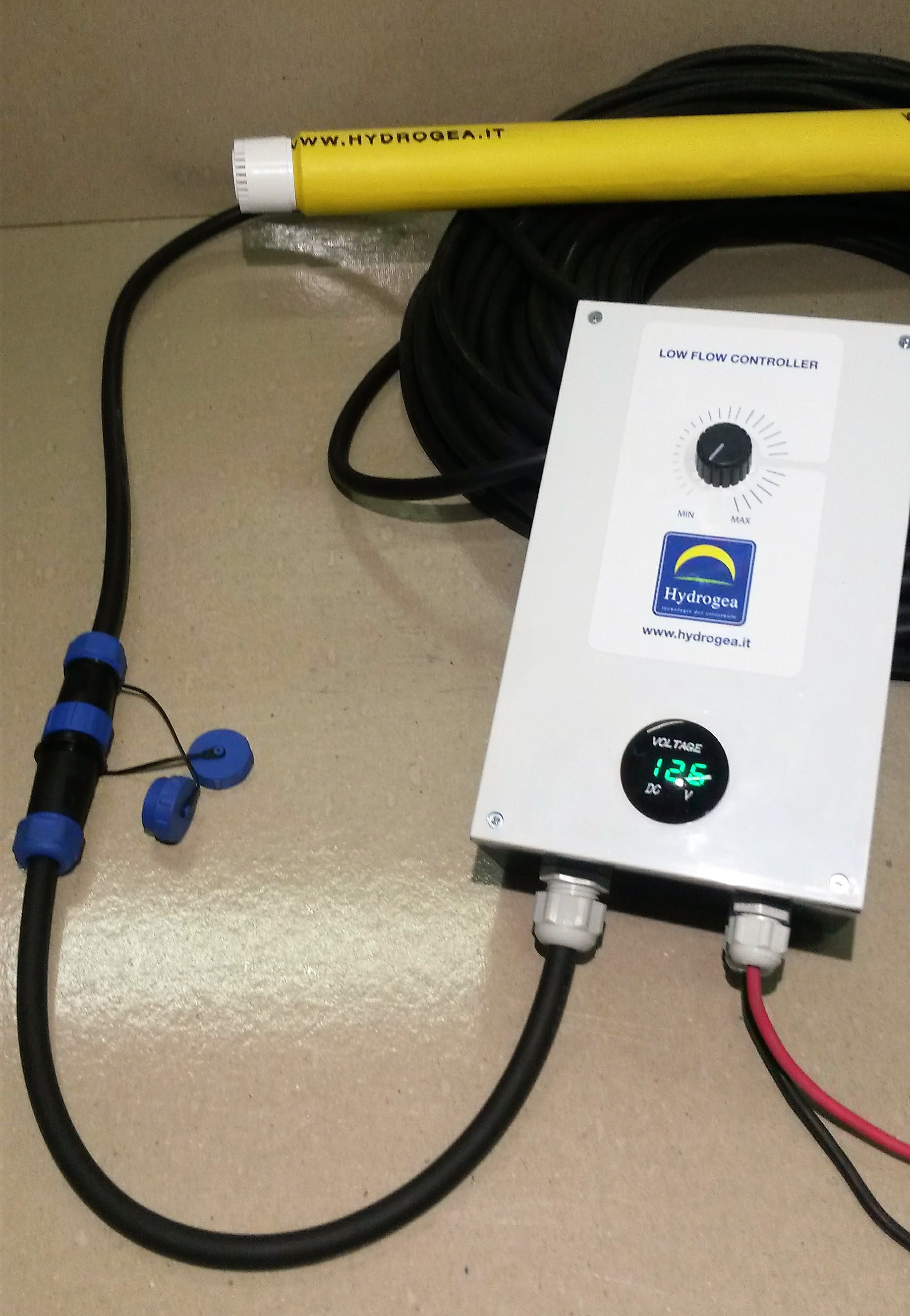

The 12V Pump Booster regulator is supplied with a display indicating the battery charge during its use. When the voltage indicated on the display is equal to or less than 11,5V, it is mandatory to stop immediately the pumping in order to prevent the battery from being irremediably damaged. The battery must be replaced with a fully charged one.

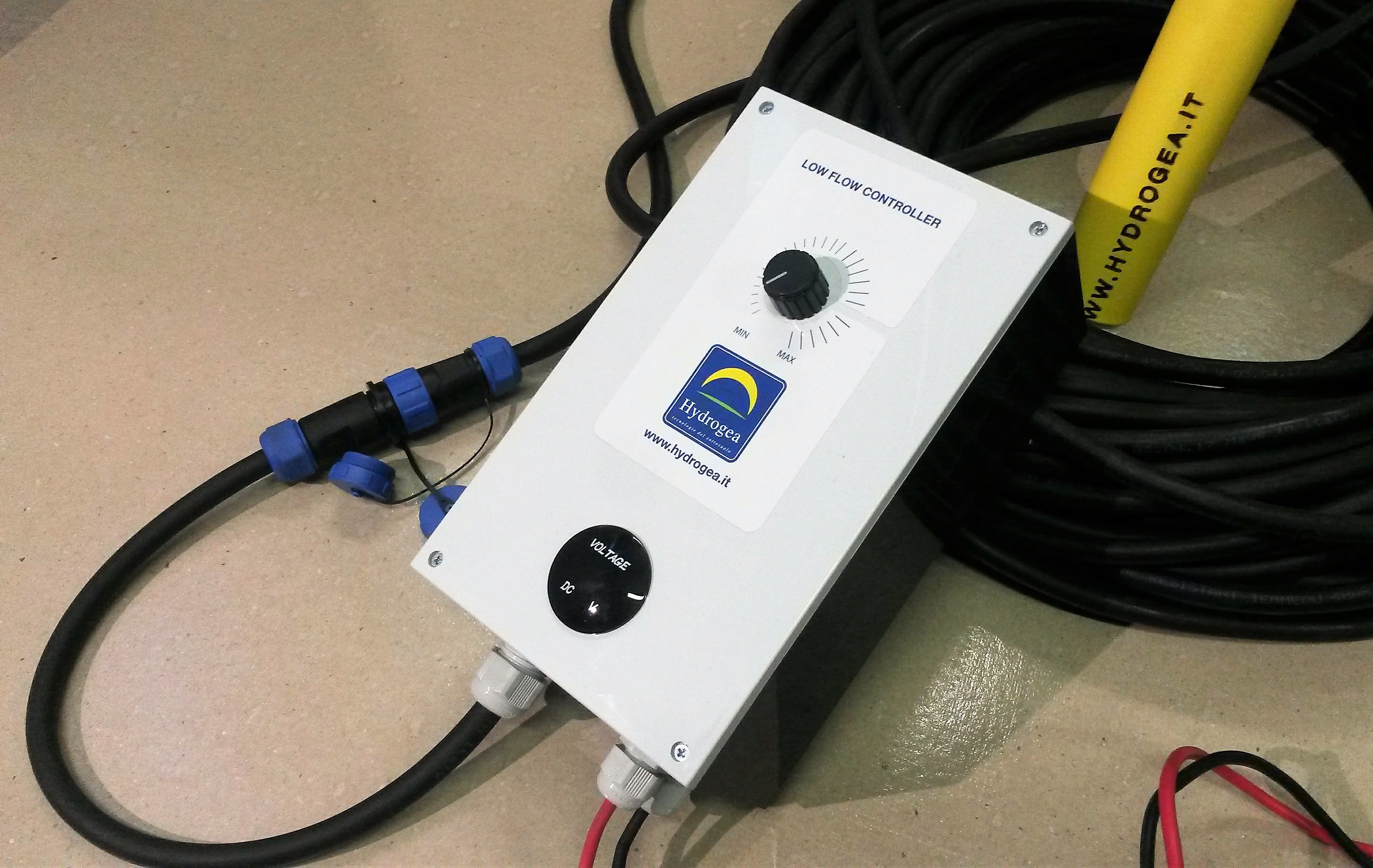

The regulation is carried out by the knob that serves as a switch.
Do not connect the battery with the switch on.
Power supply: 12V
Output voltage: 20V
