PNEUMATIC PUMP BOTTOM INLET 2"

Pneumatic submersible pump total fluid bottom inlet.

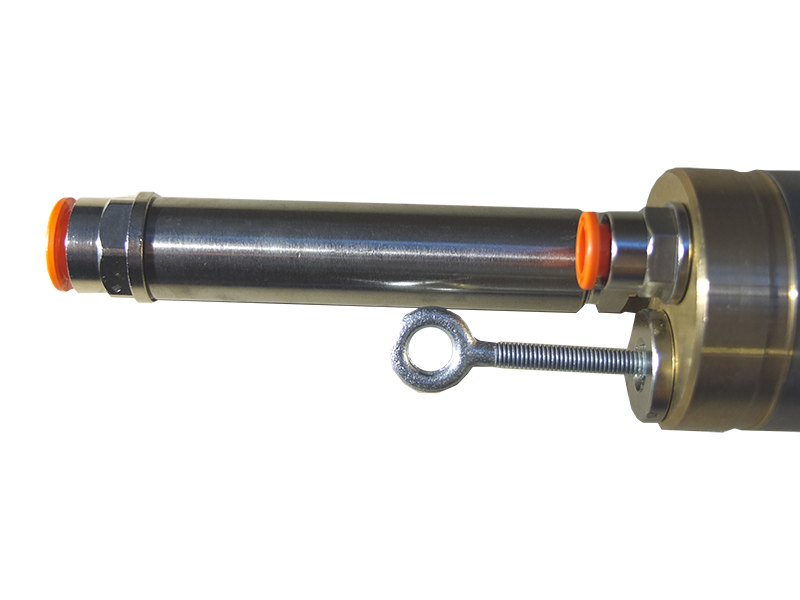

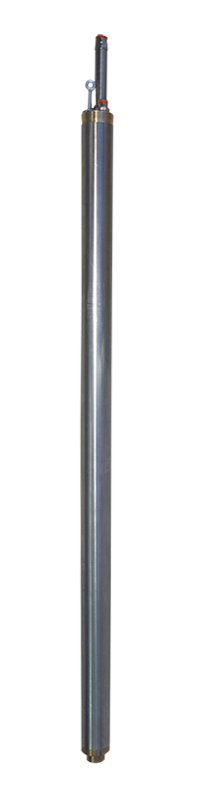

The pneumatic pump total fluid is a submersible pump that is pneumatically driven.This pump is used for the extraction of water from the bottom of wells orpiezometers or liquids with density higher than water. Adjustable pulses ofcompressed air assure the pump’s operation. The control/regulation of the pump can be electric or pneumatic. The pump consists of a bronze head, a bronze pad,a connection for the entry of compressed air, a non-return valve for the flowof liquids and a ball non-return valve for the bottom loading.

Specifications

  • External diameter: 48,3 mm

  • Max flow rate: 20 l/min

  • Pump body: inox AISI 304

  • Inlet pressure: 0 – 8 bar

  • Max delivery height: 80 mt

Rivenditore esclusivo per l'Italia

www.acquageo.com
