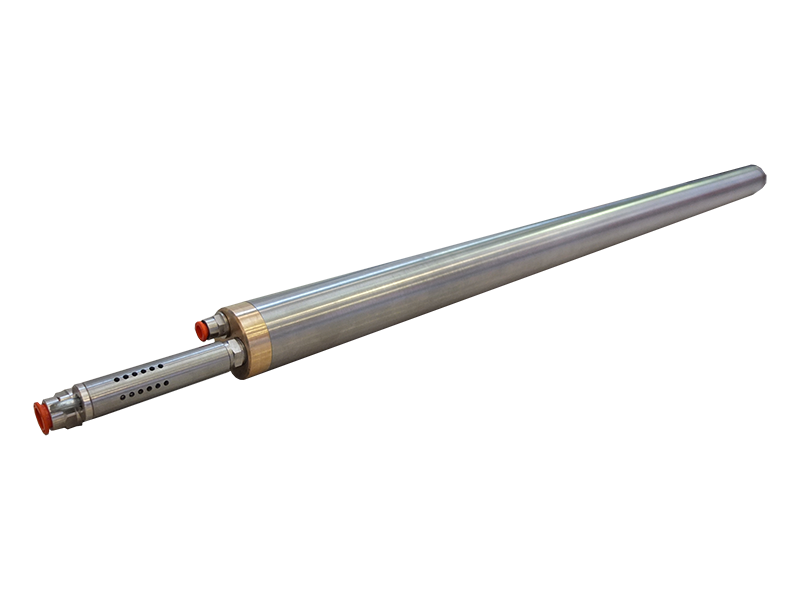

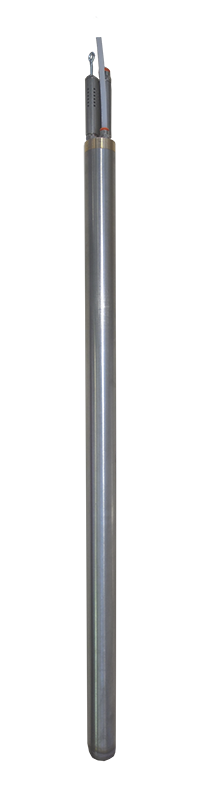

The pneumatic pump total fluid is a submersible pump that is pneumatically driven.This pump is used for the extraction of water from the bottom of wells orpiezometers or liquids with lower density than water. Adjustable pulses of compressed air assure the pump’s operation.

The control/regulation of the pump can be electric or pneumatic. The compressed air pulses and, therefore, the control of the pump are started by a panel, that can be electric or pneumatic as well. This panel is essential in order to allow the functioning of all The pump consists of a bronze head, a bronze pad,a connection for the entry of compressed air, a non-return valve for the flowof liquids, a ball non-return valve for the top loading.

Specifications

• External diameter: 48,3 mm

• Max flow rate: 10 l/min

• Pump body: inox AISI 304

• Inlet pressure: 0 – 8 bar

• Max delivery height: 80 m
