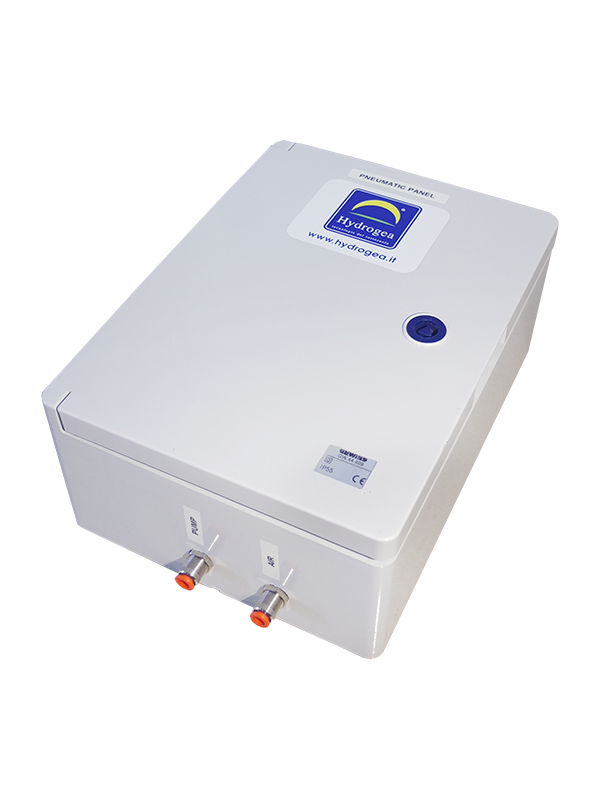

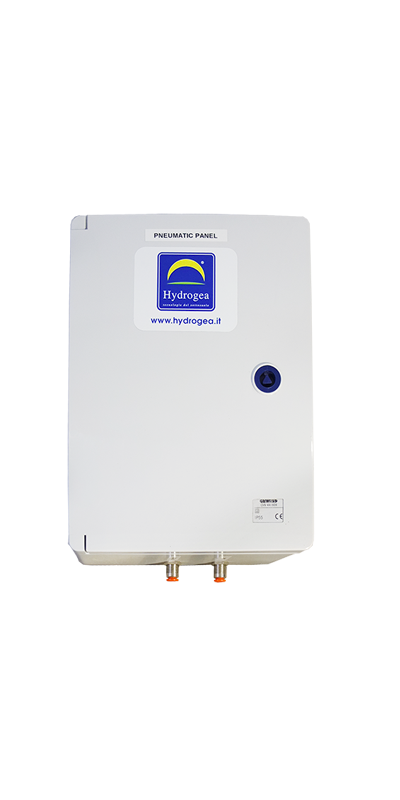

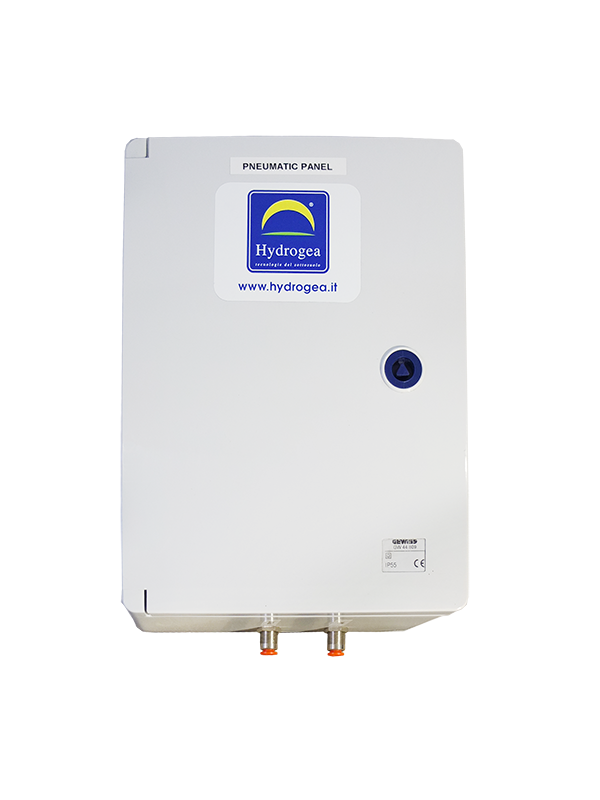

The pneumatic panel for pneumatic pumps can be combined to various pneumatic systems:

• pneumatic pump total fluid top inlet 2”
• pneumatic pump total fluid top inlet 3”
• pneumatic pump total fluid bottom inlet 2”
• active skimmer.

The pneumatic panel allows the pneumatic system to carry out the ON/OFF cycles of compressed air, fundamental for its proper functioning.

The pneumatic panels for pneumatic pumps work thanks to the same compressed air that allows the functioning of the pneumatic pump/s connected to it. The electric power is not needed.

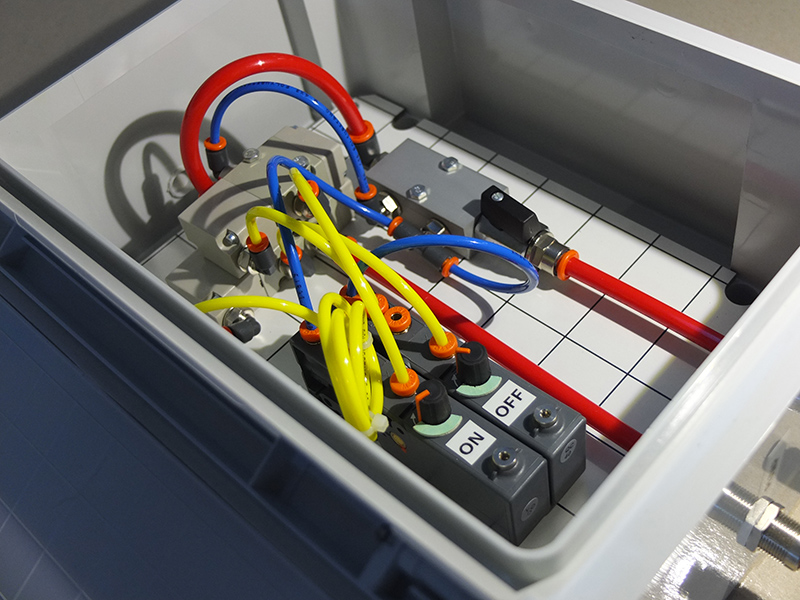

The regulation of the ON/OFF cycles is accomplished by two rotary selectors situated inside the panel. The ON selector should be activated for a period of time that goes from 0 to 30 seconds (depending on the inlet pressure that should be between 2 and 5 bars), the same is valid for the OFF selector (0 to 30 seconds).
It is possible to connect up to four pneumatic pumps to each pneumatic panel, in that case all pumps would have the same regulation of ON/OFF times.
It is possible to increase up to 30 minutes the OFF times by adding a lung.
There is a floating pneumatic valve (pneumatic level switch) that allows to close mechanically the pneumatic feeding circuit of the pneumatic panel in case, for example, of the filling of a storage tank.

Specifications

• Dimensions: 32 x 24 x 13

• Minimum pressure: 2.5 bar

• ON regulation: 30"

• OFF regulation: 30" (It is possible to increase up to 30 minutes the OFF times by adding a lung.)
